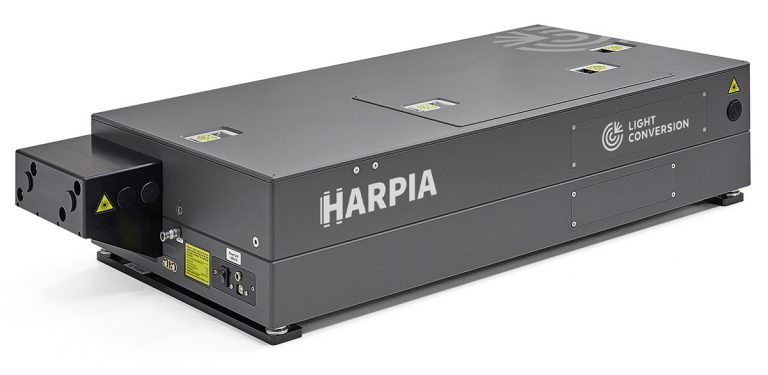

超快瞬态吸收光谱仪 HARPIA-TA

  • 高重复频率下性能优异
  • 测量范围从紫外到中红外
  • 行业领先的灵敏度
  • 时间分辨和多脉冲实验模块
  • 高度自动化,占地面积小

特性

  • 高重复频率下性能优异
  • 测量范围从紫外到中红外
  • 行业领先的灵敏度
  • 时间分辨和多脉冲实验模块
  • 高度自动化,占地面积小

HARPIA-TA 超快瞬态吸收光谱在 HARPIA 系统中可提供泵浦探测测量功能。有多种探测光配置和检测选项可用:从用于单波长检测的光电二极管到结合光谱分辨率宽带检测的白光超连续光谱探测。HARPIA-TA 具有广泛的自动化选项,提供泵浦光束位置跟踪和对准、泵浦偏振控制、超连续谱发生器切换、样品定位,以及瞬态吸收和瞬态反射测量之间的切换。宽带探头选项包含紫外至中红外的范围。探头延迟级可配置高达 8 ns。

HARPIA-TA 兼容低温恒温器、蠕动泵和其他附件,并且可以使用扩展模块进一步扩展光谱仪的功能。

型号 HARPIA-TA
配置 UV / VIS / NIR / SWIR MIR
探测光激发波长 1030 nm 515 nm 800 nm n/a 1)
探测光波长范围 460 – 1600 nm 350 – 750 nm 330 – 1400 nm 190 nm – 16000 nm 2)
测量波长范围 200 – 1100 nm / 900 – 1700 nm / 900 – 2600 nm 2 – 13 μm 3)
延迟范围 2 ns / 4 ns / 8 ns
延迟分辨率 2.1 fs / 4.2 fs / 8.3 fs
激光重复频率 1 – 1000 kHz
时间分辨率 < 1.4x 泵浦光或探测光脉宽 (以较长者为准)
最大数据采集速度 4000 spectra/s
信噪比 4) 250 : 1
  1. 用波长可调的光源 (如 ORPHEUS-HP) 代替激光器激发白光连续介质。
  2. ORPHEUS‑HP 的扩展调谐范围。也适用于 UV/VIS/NIR/SWIR 配置。
  3. 可根据要求提供高达 24 µm; 联系 sales@lighton.com 了解更多详情。
  4. 不适用于所有样品和配置。此处根据是在 SCHOTT OG530 玻璃为样品,使用 54 nJ, 370 nm 的泵浦光和 > 4.5 mOD 在最大的频谱范围下测量的一组 2500 个光谱数据所得的标准差。
型号 HARPIA-TA
延迟分辨率 100 ps
时间分辨率 2 ns
信噪比 1) 40 : 1
  1. 不适用于所有样品和配置。此处根据是在 SCHOTT OG530 玻璃为样品,使用 515 nm 的泵浦光和 > 10 mOD 在最大的频谱范围下测量的一组 2000 个光谱数据所得的标准差。
型号 HARPIA-TA
尺寸 (长×宽×高) 1) 730 × 420 × 160 mm
样品室区域 (长×宽) 2) 205 × 215 mm
  1. 没有外部光谱仪。
  2. 可选配外部样品架。
