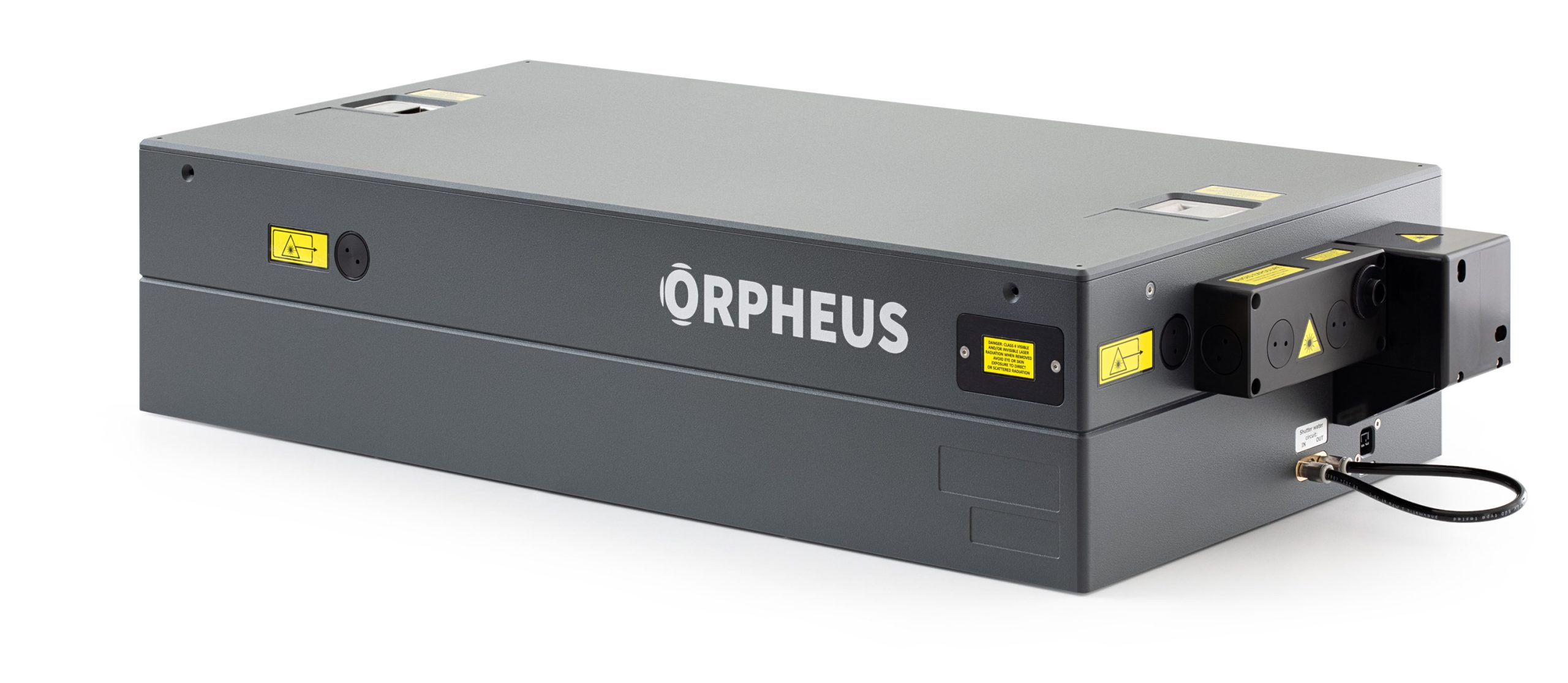

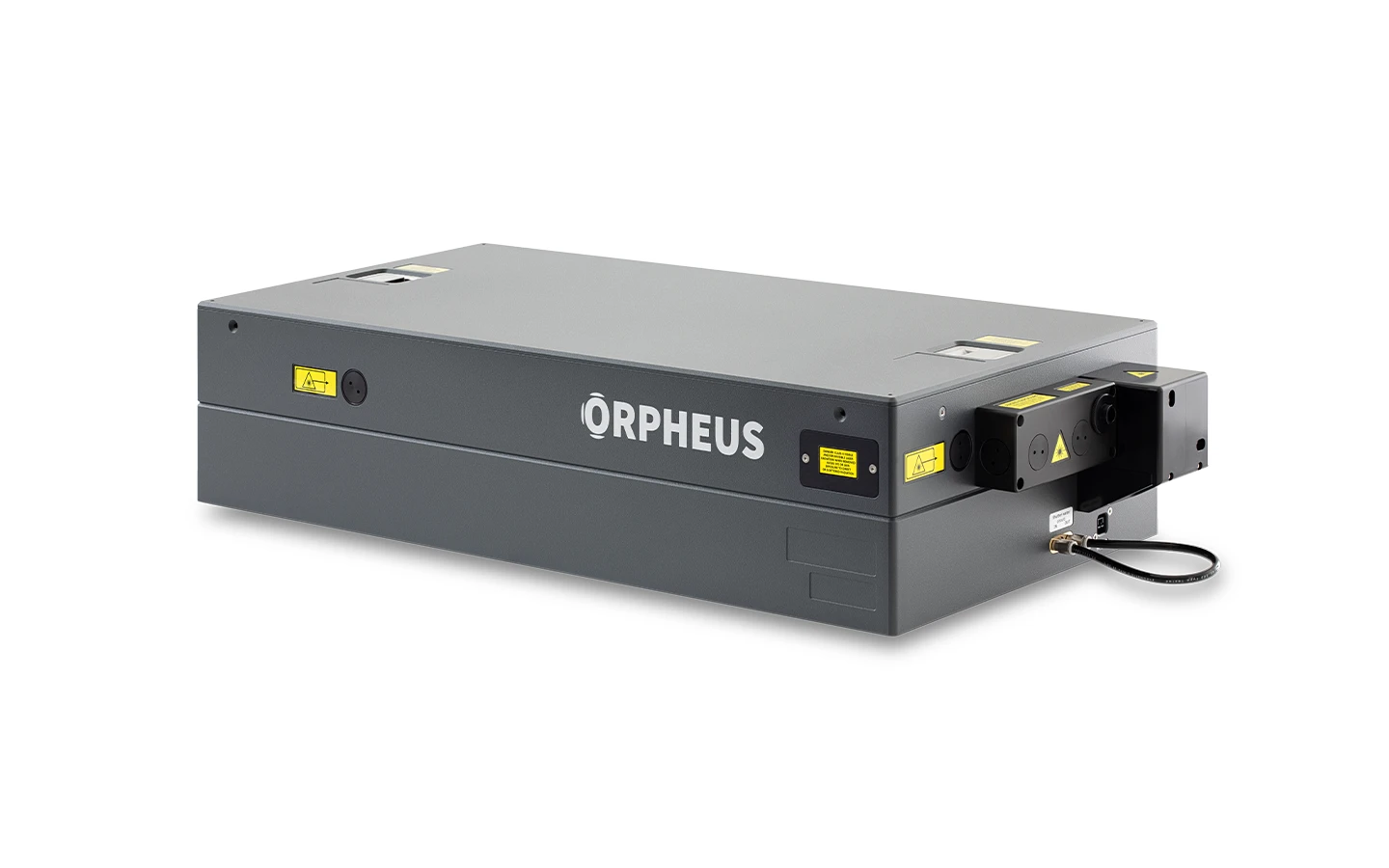

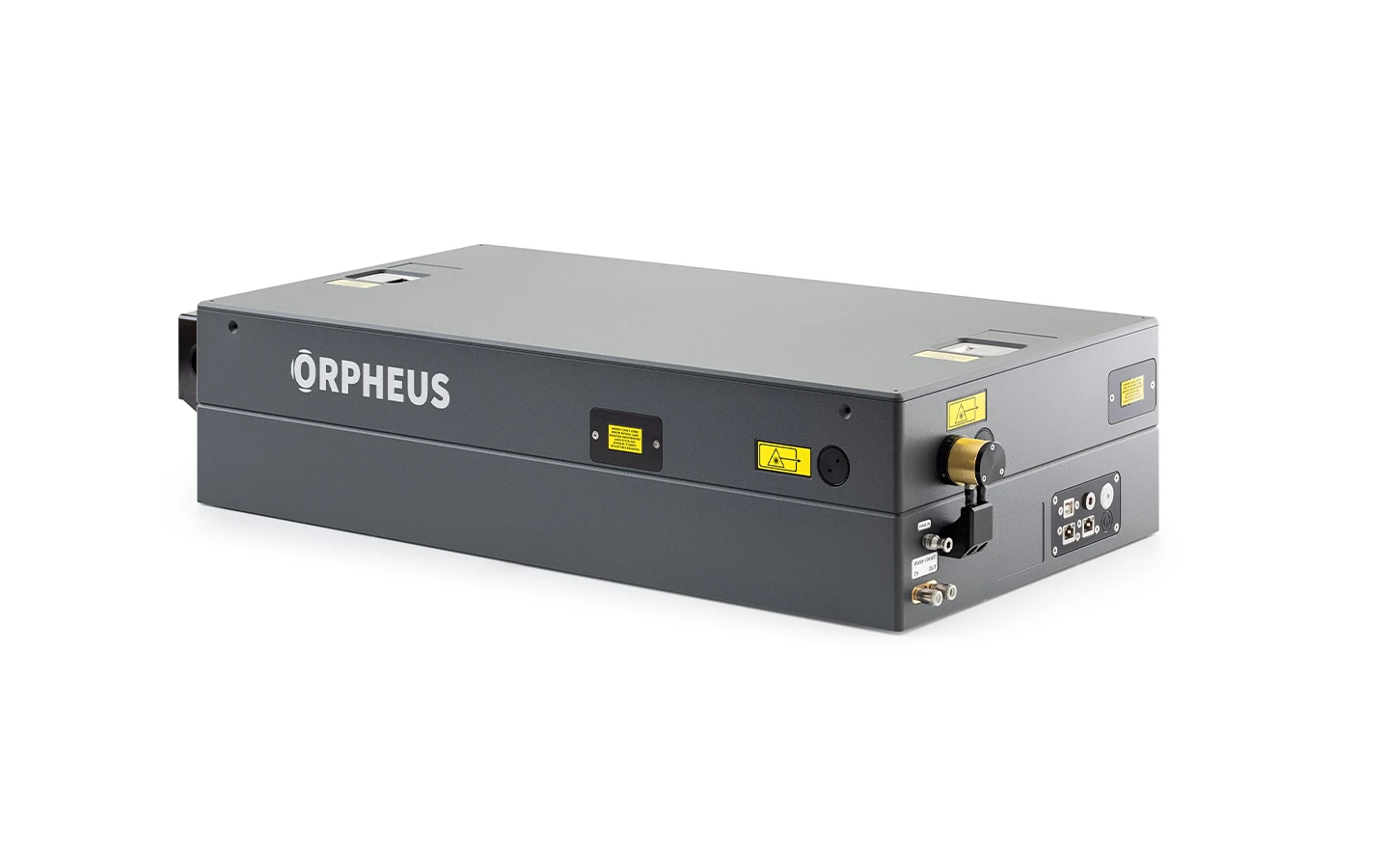

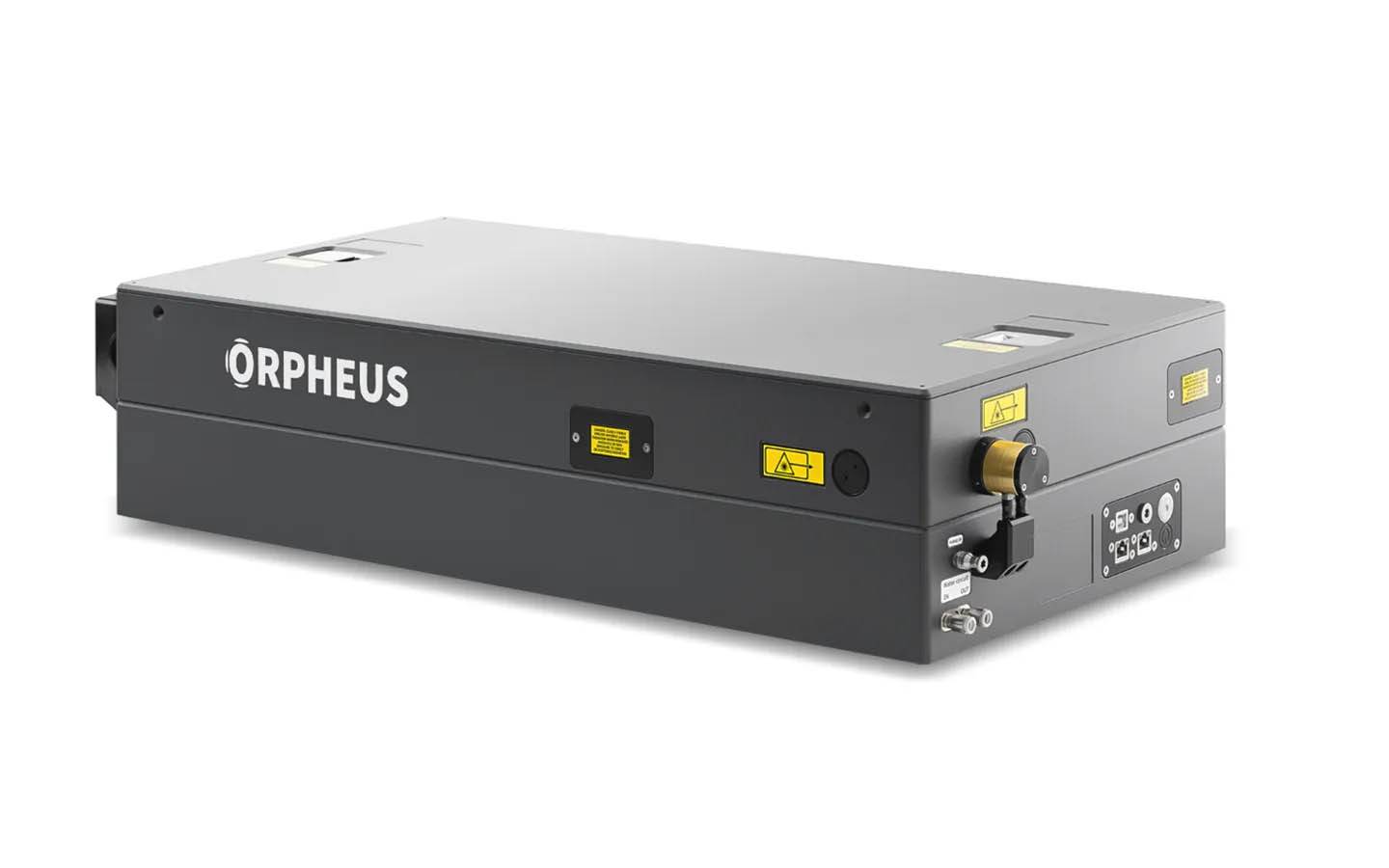

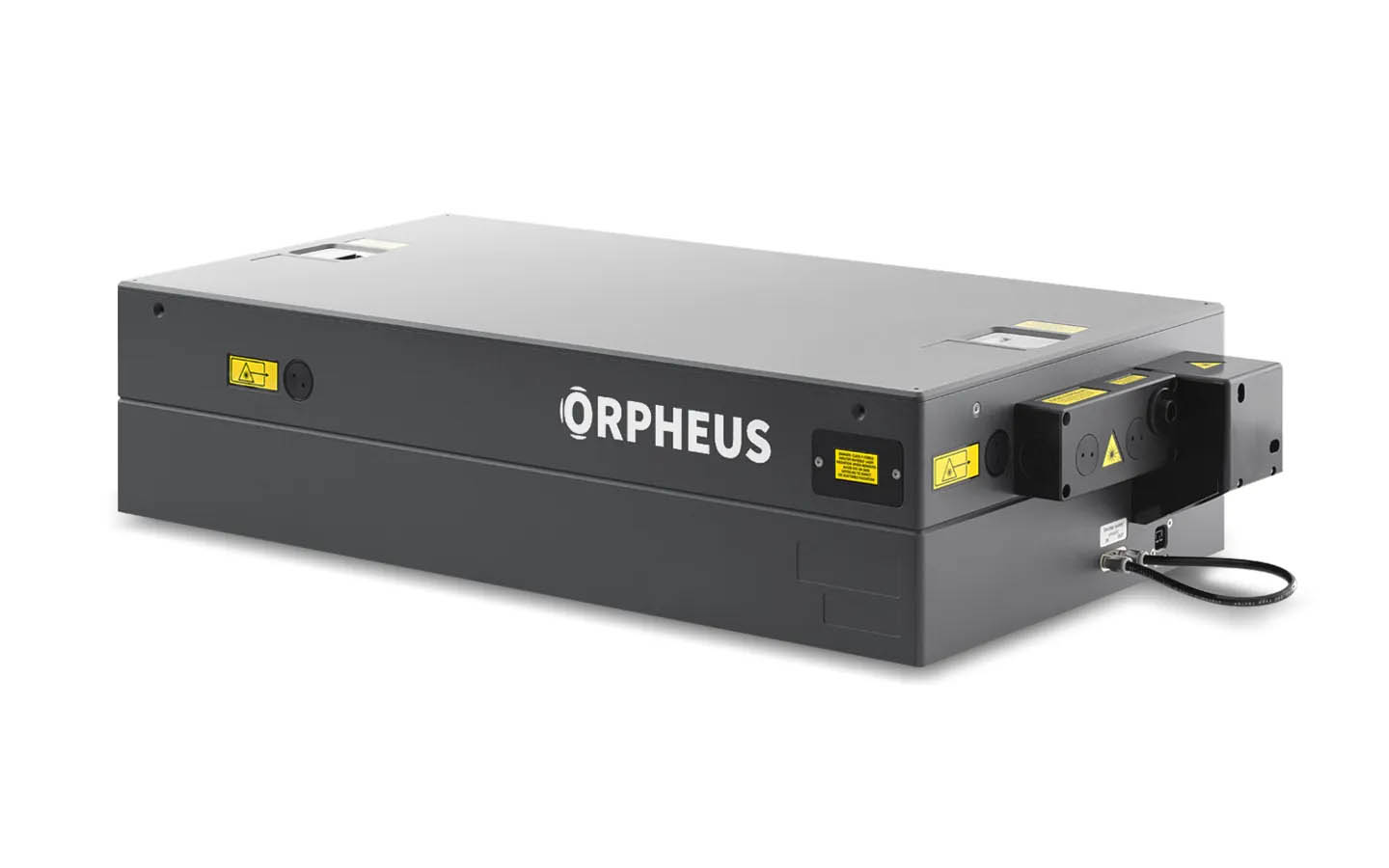

ORPHEUS-N 是一款非共线光学参量放大器(OPA),也称为 NOPA。根据型号不同,ORPHEUS-N 集成了二次谐波发生器或三次谐波发生器,分别可产生 515 nm或 343 nm的泵浦光:
- ORPHEUS-N-2H: 二次谐波泵浦可产生 700–850 nm 波长范围内 <30 fs 的脉冲。
- ORPHEUS-N-3H: 三次谐波泵浦可产生 540–660 nm 波长范围内 <30 fs 的脉冲。
两款型号均内置棱镜式脉冲压缩器。此外,可选配二次谐波发生器,将调谐范围扩展至紫外(UV)光谱区域。
单台CARBIDE或PHAROS飞秒激光器可驱动多个NOPA,实现泵浦光束和/或探测光束的独立波长调谐,适用于高级实验。
如需更宽的调谐范围,请参考ORPHEUS-F宽带混合OPA。对于调谐范围在500 nm附近的超短脉冲,请参考ORPHEUS-VIS。
规格参数
型号 | ORPHEUS‑N‑2H | ORPHEUS‑N‑3H |
---|---|---|
主输出 | ||
可调范围 | 650 – 900 nm (信号光) | 520 – 900 nm (信号光) |
最高泵浦功率 | 8 W | 8 W |
最高泵浦功率 | 8 W | |
泵浦单脉冲能量 | 10 – 200 µJ | 12 – 200 µJ |
转换效率 | > 7% @ 700 nm > 5% @ 800 nm | > 1.3% @ 580 nm > 0.7% @ 700 nm > 0.3% @ 800 nm |
综合倍频转换效率 (2H/3H) 1) | > 35% (515 nm) | > 25% (343 nm) |

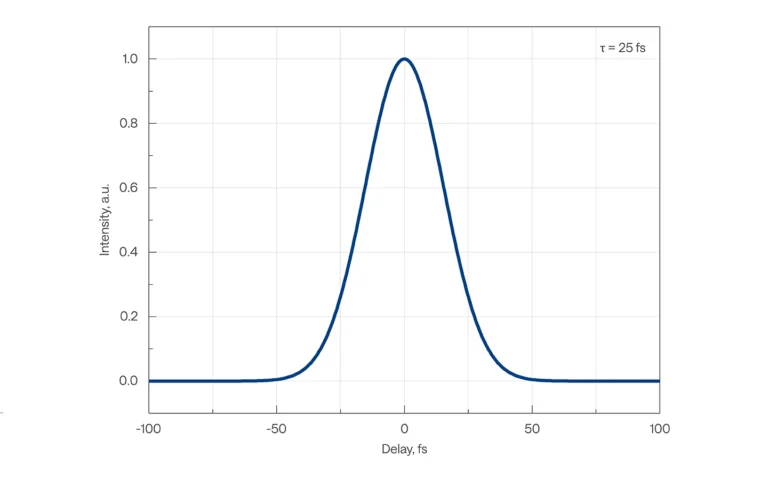

压缩后的脉宽 | < 30 fs @ 700 – 850 nm | < 30 fs @ 540 – 660 nm < 70 fs @ 660 – 800 nm |
长期功率稳定性 (8小时) 2) | < 2% @ 800 nm | < 2% @ 580 nm |
单脉冲能量稳定性 (1分钟) 2) | < 2% @ 800 nm | < 2% @ 580 nm |
波长扩展选项 | ||
可调范围 (SHS) | 325 – 450 nm | 260 – 450 nm |
转换效率 | > 0.7 % @ 350 nm | > 0.15 % @ 290 nm |
泵浦激光器的要求 | ||
配置 | CARBIDE 或 PHAROS | CARBIDE 或 PHAROS |
配置 | CARBIDE 或 PHAROS | |
中心波长 | 1030 ± 10 nm | 1030 ± 10 nm |
中心波长 | 1030 ± 10 nm | |
最高泵浦功率 | 8 W | 8 W |
最高泵浦功率 | 8 W | |
重复频率 | 单脉冲 – 800 kHz | 单脉冲 – 600 kHz |
泵浦单脉冲能量 | 10 – 200 μJ | 12 – 200 μJ |
脉宽 3) | 180 – 500 fs | 180 – 500 fs |
脉宽 3) | 180 – 500 fs | |
环境和使用要求 | ||
工作温度 4) | 19 – 25 ºC (建议使用空调) | 19 – 25 ºC (建议使用空调) |
工作温度 4) | 19 – 25 ºC (建议使用空调) | |
相对湿度 4) | 20 – 70% (非冷凝) | 20 – 70% (非冷凝) |
相对湿度 4) | 20 – 70% (非冷凝) | |
电气要求 | 100 – 240 V AC, 1.4 A; 50 – 60 Hz | 100 – 240 V AC, 1.4 A; 50 – 60 Hz |
电气要求 | 100 – 240 V AC, 1.4 A; 50 – 60 Hz | |
额定功率 | 120 W | 120 W |
额定功率 | 120 W | |
功耗 | 待机时: 10 W, 波长调谐过程中的最大值: 100 W | 待机时: 10 W, 波长调谐过程中的最大值: 100 W |
功耗 | 待机时: 10 W, 波长调谐过程中的最大值: 100 W | |
净化要求 | 氮气净化 – 可选 | 氮气净化 – 必要, 1 – 3 升每分钟 |
型号 | ORPHEUS‑N‑2H | ORPHEUS‑N‑3H |
---|
- 不与 NOPA 出光口同时输出。
- 表示为 NRMSD (归一化均方根偏差)。
- FWHM (半高全宽),假设为高斯脉冲波形。
- 规格保证在最大温度变化为±1℃和湿度变化为±10%的情况下有效。
性能

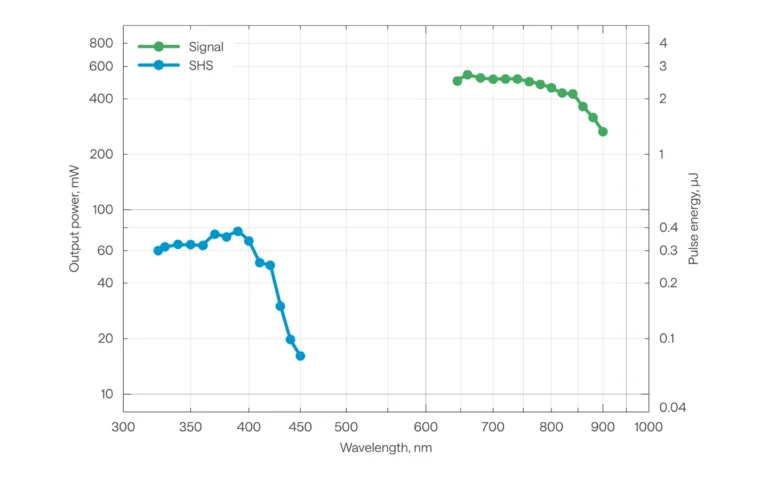

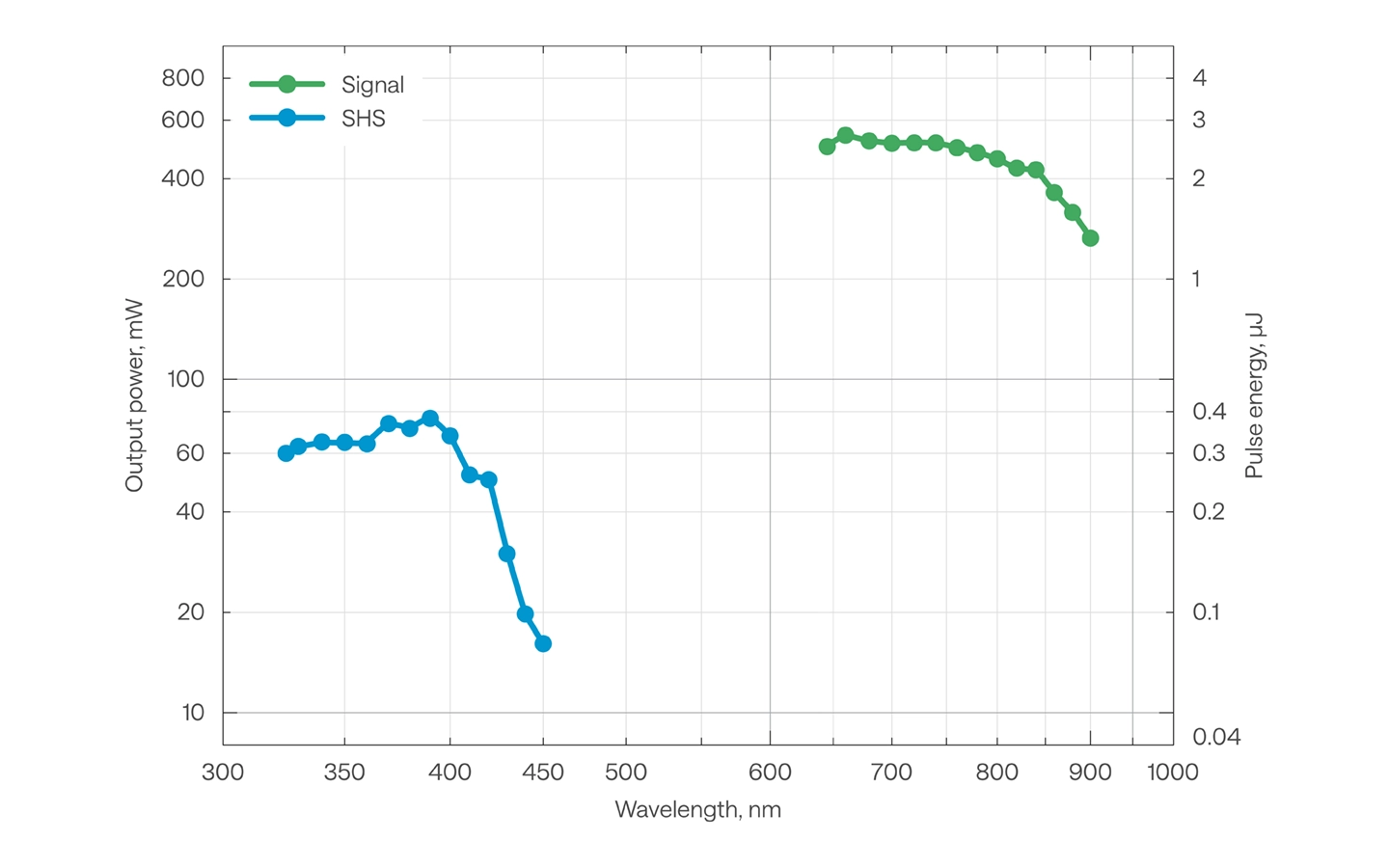

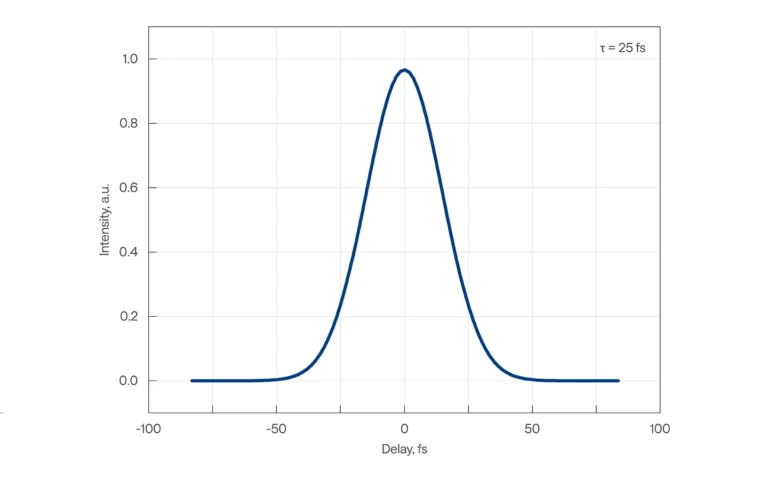

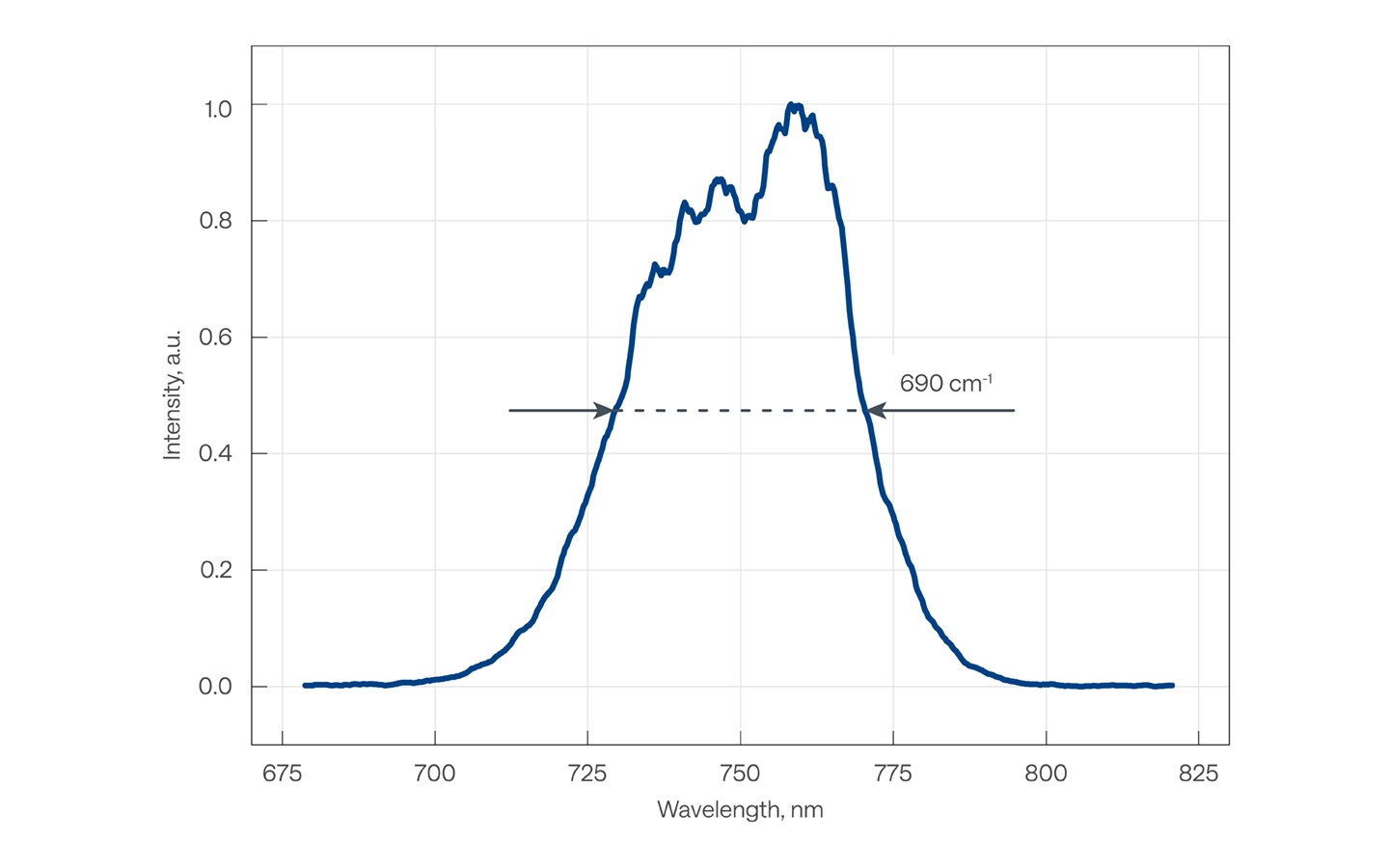

ORPHEUS‑N‑2H
如需定制调谐曲线,请访问 Optics ToolBox。

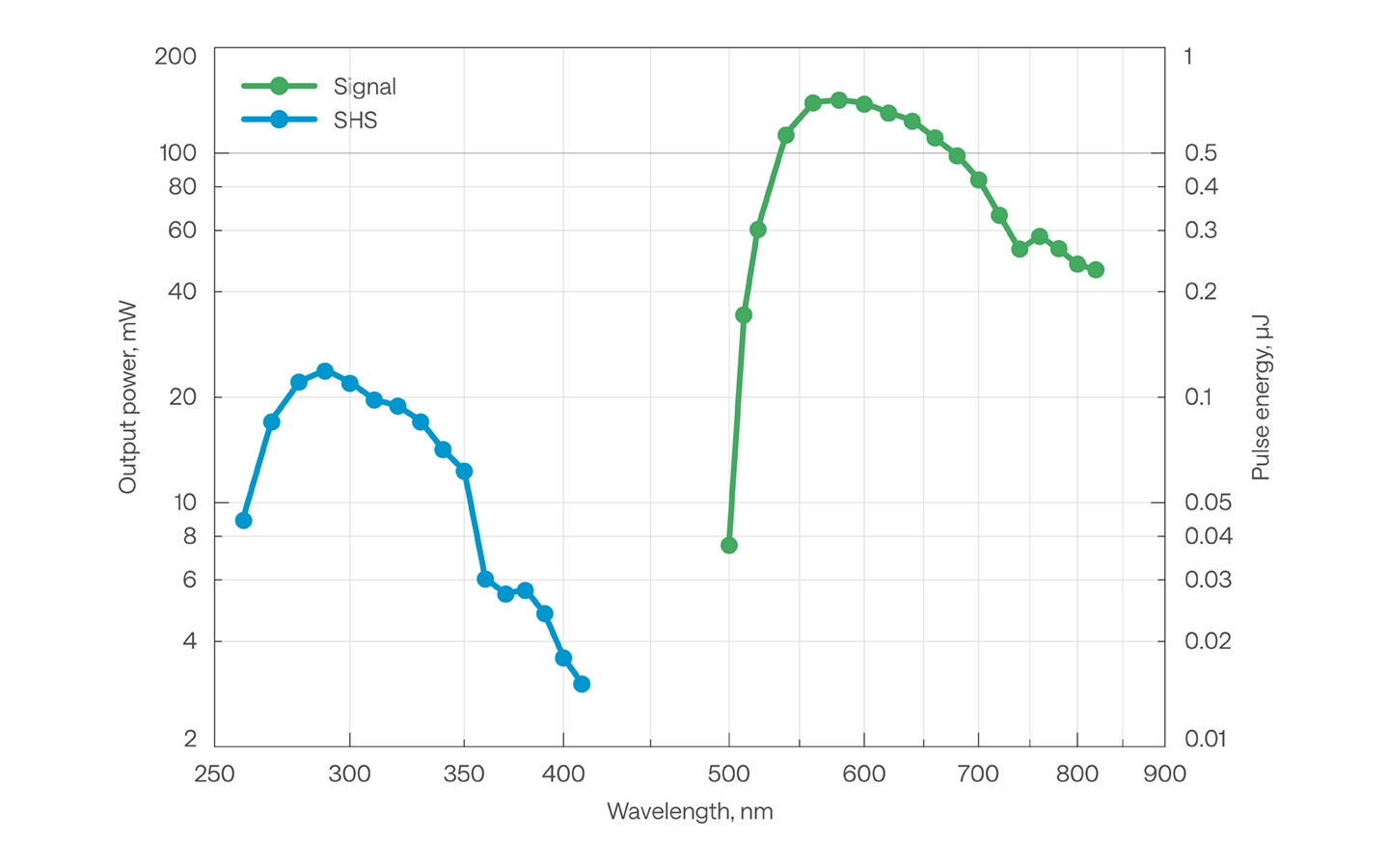

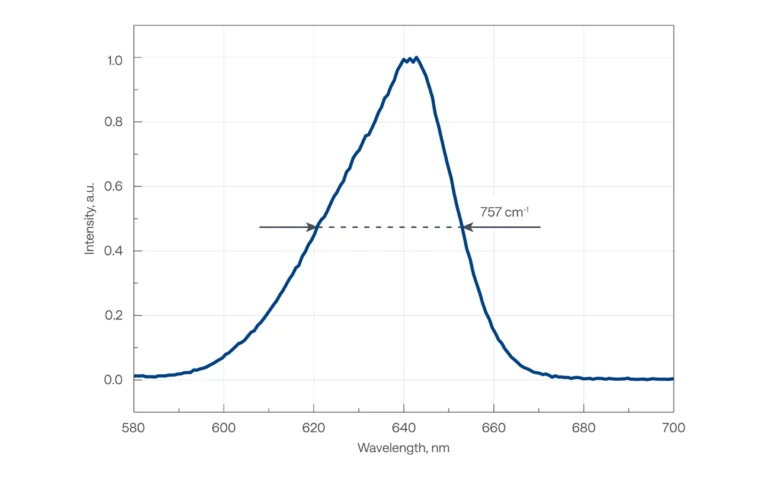

ORPHEUS‑N‑3H
如需定制调谐曲线,请访问 Optics ToolBox。
相关期刊
Dispersion scan frequency resolved optical gating for consistency check of pulse retrieval
M. Guesmi, P. Veselá, and K. Žídek
Review of Scientific Instruments • 2024
Efficient light upconversion via resonant exciton-exciton annihilation of dark excitons in few-layer transition metal dichalcogenides
S. Chen, Y. Chen, P. Lo, K. Boschen, G. Peng et al.
Springer Science and Business Media LLC • 2024
Enthalpy-uphill exciton dissociation in organic/2D heterostructures promotes free carrier generation
F. Rudayni, K. Rijal, N. Fuller, and W. Chan
Materials Horizons • 2024
From light to hydrogen: the complete life cycle of free charges in photocatalytic nanoparticles
J. M. de la Perrelle, R. J. Hudson, A. Dolan, S. Jana, X. Pan et al.
Sustainable Energy & Fuels • 2024
In vivo visualization of environmentally relevant microplastics and evaluation of gut barrier damages in Artemia franciscana
J. I. Kwak, H. Rhee, L. Kim, and Y. An
Journal of Hazardous Materials • 2024
Morphology- and crystal packing-dependent singlet fission and photodegradation in functionalized tetracene crystals and films
W. T. Goldthwaite, E. Lambertson, M. Gragg, D. Windemuller, J. E. Anthony et al.
The Journal of Chemical Physics • 2024
Real-time tracking of ground- and excited-state responses of photoactive molecules to a change of microenvironment, from femtoseconds to milliseconds
C. Li, A. Sampaoli, D. Bäuerle, M. B. Vera, G. Peygourdi et al.
American Chemical Society (ACS) • 2024
Reducing nonradiative recombination for highly efficient inverted perovskite solar cells via a synergistic bimolecular interface
S. Xiong, F. Tian, F. Wang, A. Cao, Z. Chen et al.
Nature Communications • 2024
Thin Film Stoichiometry and Defects Management for Low Threshold and Air Stable Near‐Infrared Perovskite Laser
C. J. Wu, A. Olivati, G. Folpini, H. Wang, and A. Petrozza
Advanced Materials • 2024
Ultrafast energy quenching mechanism of LHCSR3-dependent photoprotection in Chlamydomonas
M. Zheng, X. Pang, M. Chen, and L. Tian
Nature Communications • 2024
客户评价
资料下载
产品数据表
ORPHEUS-N 非共线光学参量放大器
产品数据表
产品目录
飞秒激光器飞秒科研系统
产品目录
概述
规格参数
性能

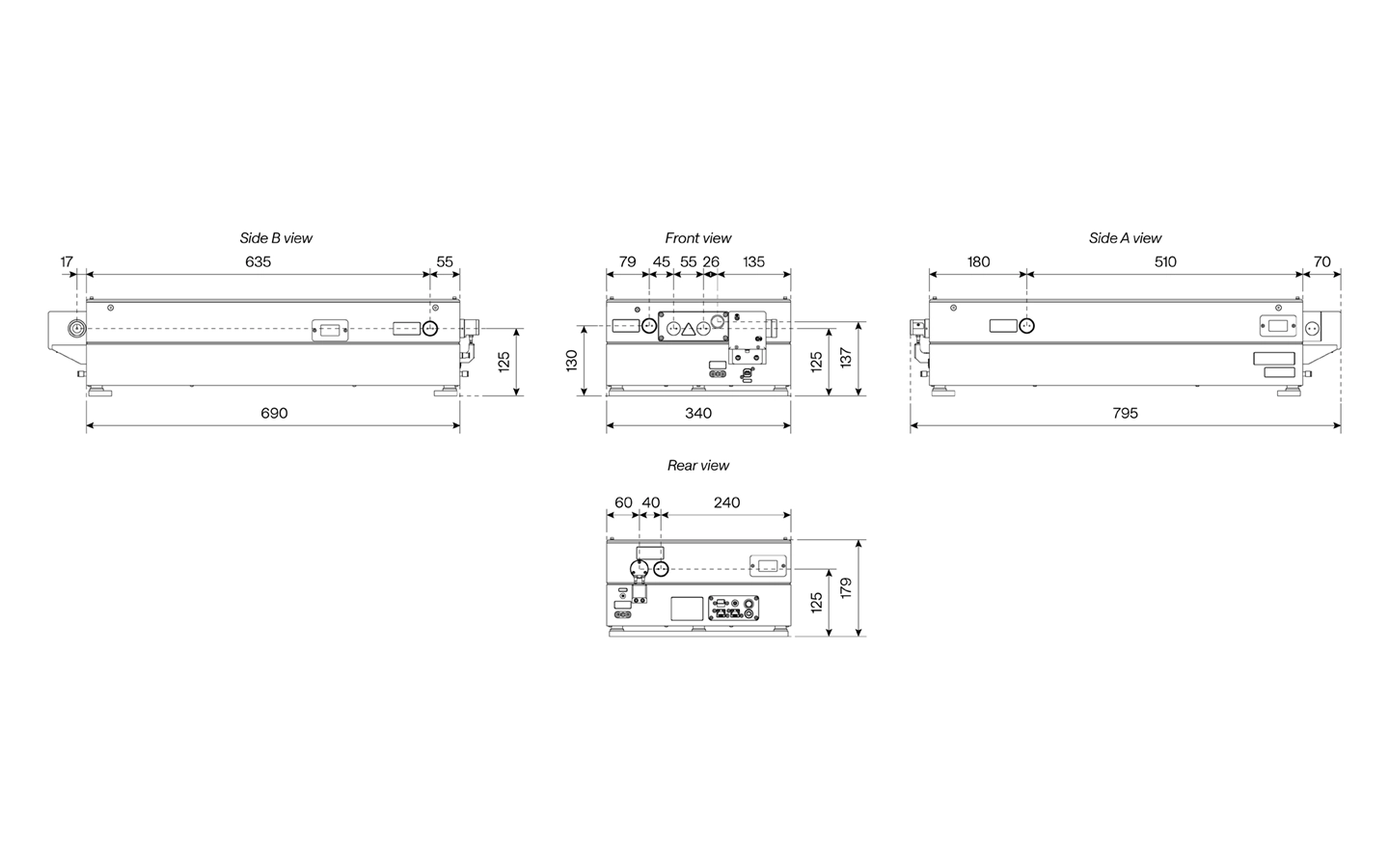

轮廓图
