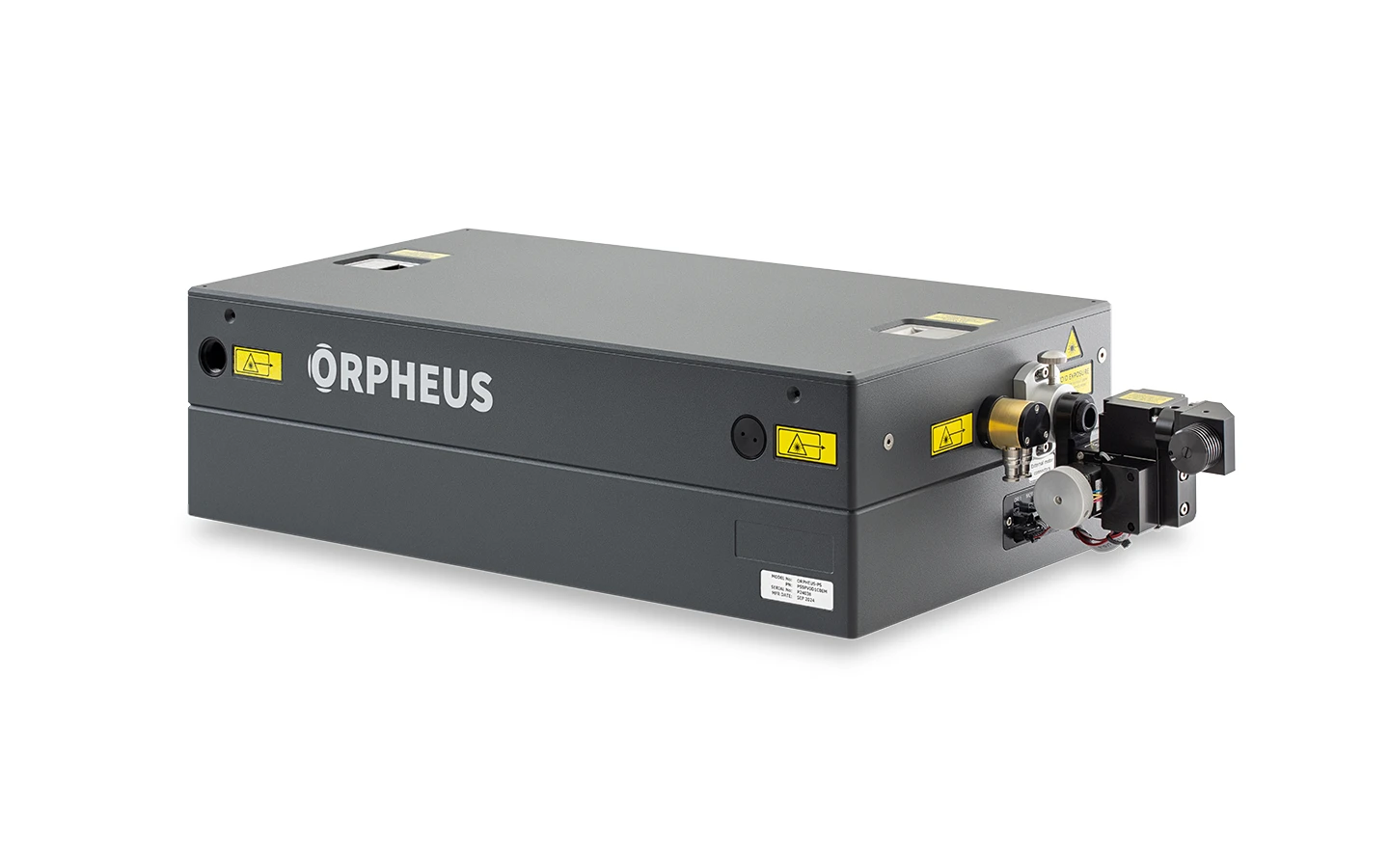

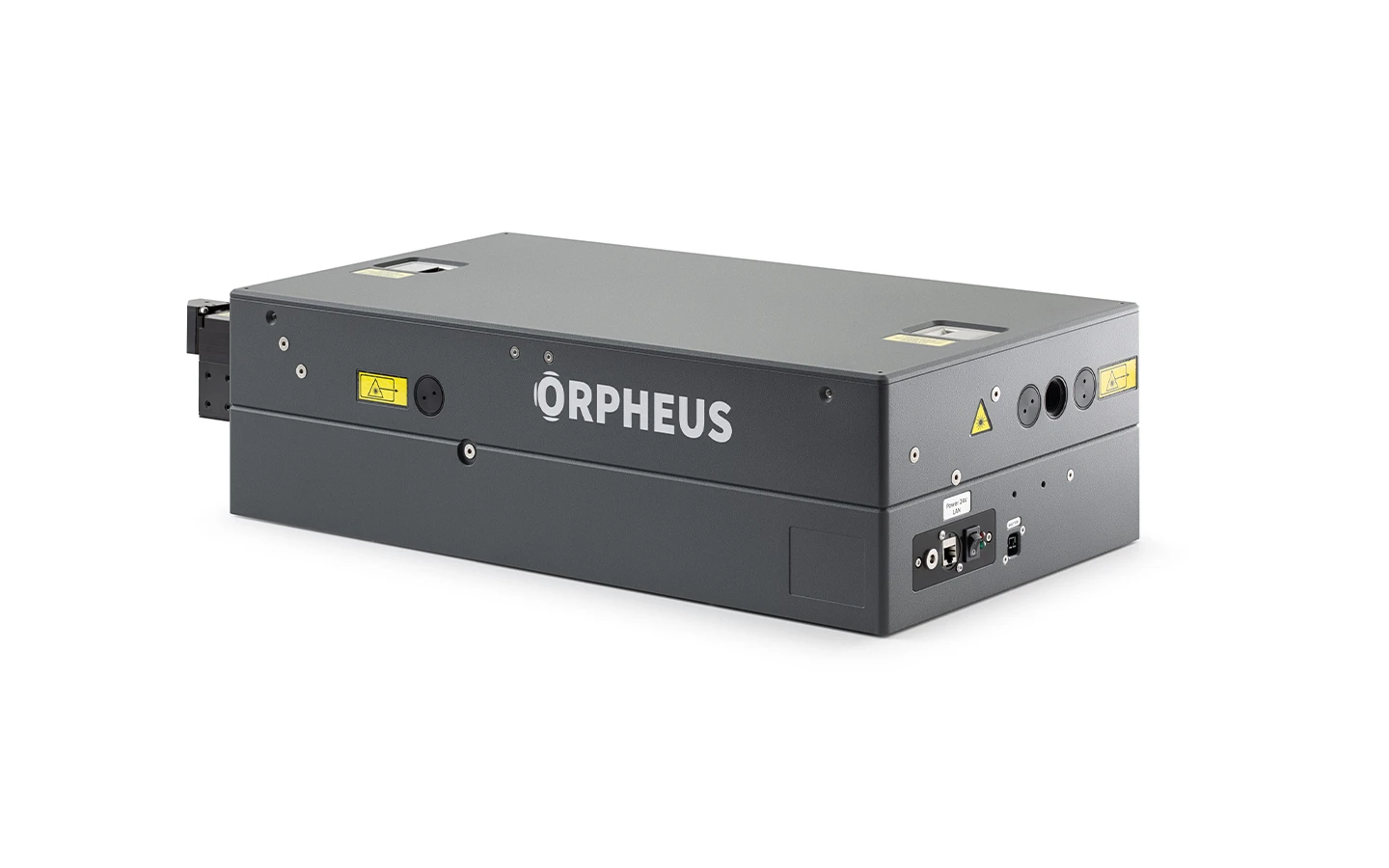

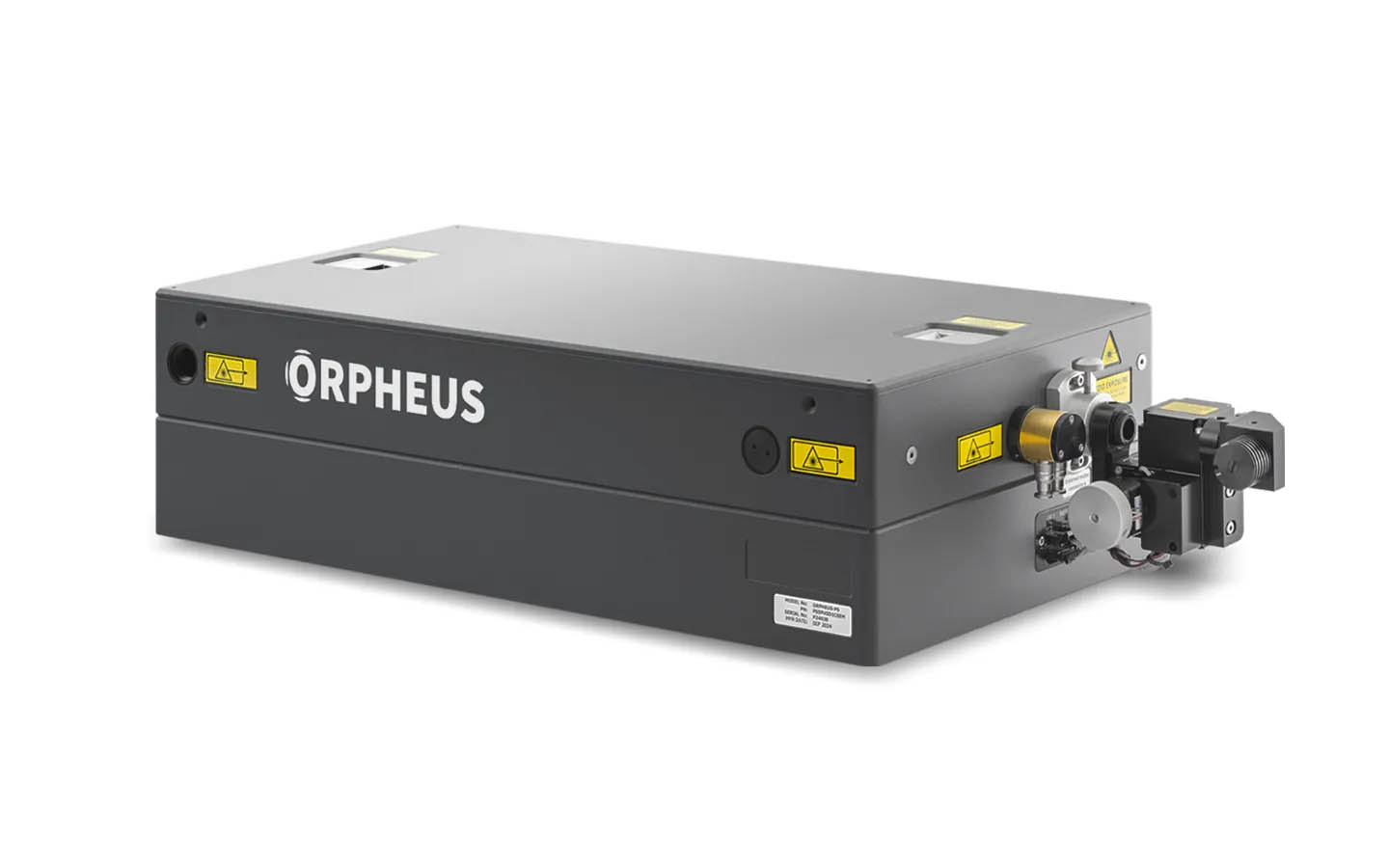

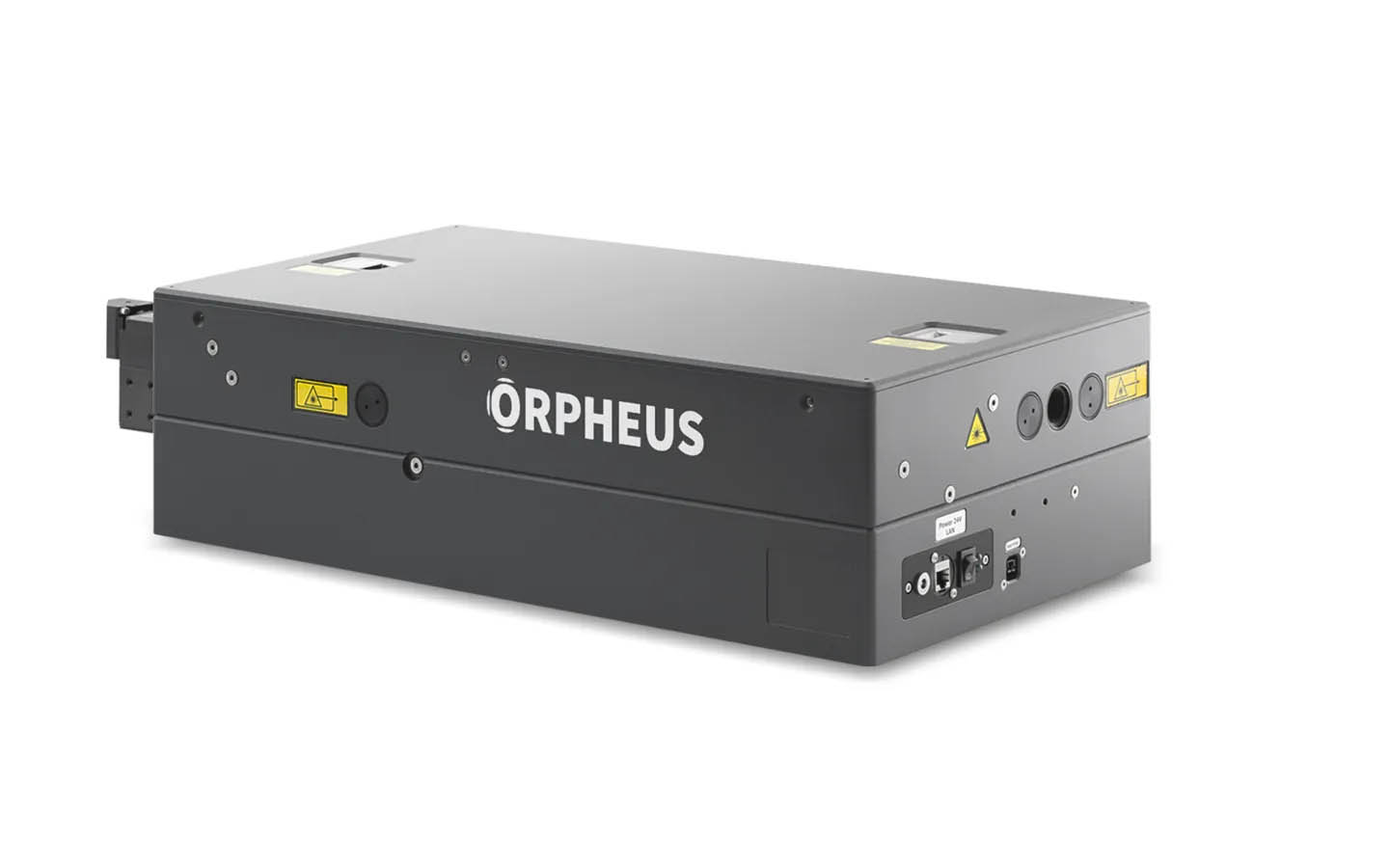

ORPHEUS-PS 是一款专为与 CARBIDE 和 PHAROS 激光器配合使用而设计的窄带光参量放大器(OPA)。该设备由在二次谐波带宽压缩器(SHBC)中产生的皮秒脉冲泵浦,并由飞秒脉冲产生的白光连续谱进行种子激发。这种配置与其他生成可调皮秒脉冲的方法相比,能够实现更高的脉冲间能量稳定性。白光生成与放大功能集成于单一外壳内,确保长期稳定性和易用性。
ORPHEUS-PS 具备高转换效率、带宽和衍射极限输出,以及全计算机控制功能,使其成为先进应用的可靠且用户友好的解决方案。
此外,部分泵浦激光辐射可被分流,同时驱动与ORPHEUS-PS窄带OPA并行的飞秒OPA。这使得用户能够获得适用于多种光谱应用的完整光束组合,包括飞秒受激拉曼光谱(FSRS)和和频生成(SFG)光谱。
应用
- 飞秒受激拉曼光谱法(FSRS)
- 和频生成(SFG)光谱学
规格参数
型号 | ORPHEUS-PS |
---|---|
主输出 | |
可调范围 1) | 640 – 1000 nm (信号光) 1060 – 2600 nm (闲频光) |
转换效率 | > 6% @ 700 nm |
脉宽 | 800 fs – 3 ps |
光谱带宽 | < 20 cm‑1 @ 800 nm |
单脉冲能量稳定性 2) | < 2% @ 800 nm |
附加输出1 (515 nm) | |
中心波长 3) | 515 nm ± 5 nm |
生成效率 4) | > 15% |
附加输出2 (1030 nm) | |
中心波长 5) | 1030 ± 10 nm |
最小脉宽 | < 300 fs |
单脉冲能量 | > 5 µJ |
波长扩展选项 | |
二倍频模组 320 – 500 nm (SHS), 530 – 640 nm (SHI) | > 3% @ 350 nm |
四倍频模组 210 – 250 nm (FHS), 265 – 320 nm (FHI) | > 0.3% @ 230 nm |
2400 – 4800 nm (DFG) | > 0.25% @ 3200 nm 6) |
4500 – 16000 nm (DGF3) | 可提供,欢迎联系 sales@lightcon.com。 |
泵浦激光器要求 | |
配置 7) | 带有未压缩输出光功能的 CARBIDE 或 PHAROS 激光器 8) |
中心波长 | 1030 ± 10 nm |
最高泵浦功率 | 20 W |
重复频率 | 单脉冲 – 100 kHz |
泵浦单脉冲能量 | 100 μJ – 3.2 mJ |
环境和使用要求 | |
工作温度 9) | 19 – 25 ºC (建议使用空调) |
相对湿度 9) | 20 – 70% (非冷凝) |
电气要求 | 100 – 240 V AC, 1.4 A; 50 – 60 Hz |
额定功率 | 120 W |
功耗 | 待机时: 10 W, 波长调谐过程中的最大值: 100 W |
型号 | ORPHEUS-PS |
---|

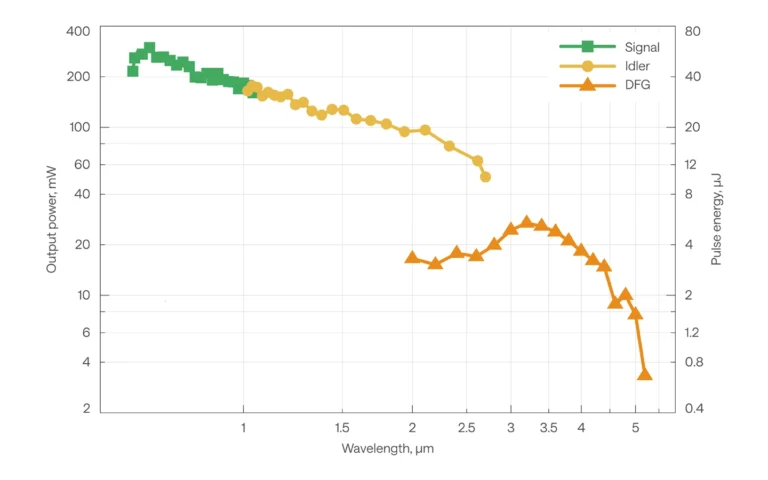

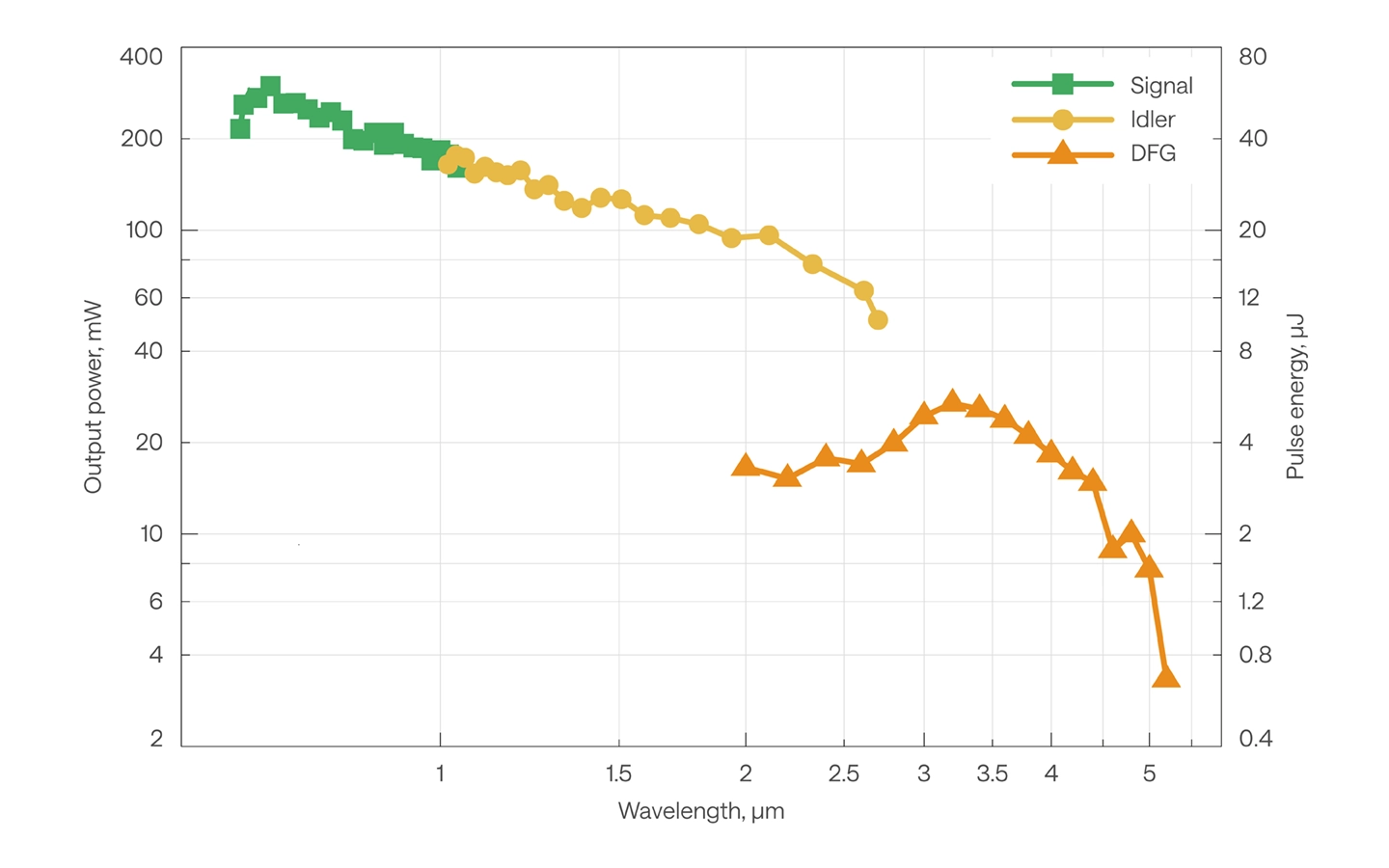

性能
如需定制调谐曲线,请访问 Optics ToolBox。
相关期刊
Coherent Spin Dynamics of Electrons in CdSe Colloidal Nanoplatelets
S. R. Meliakov, V. V. Belykh, I. V. Kalitukha, A. A. Golovatenko, A. D. Giacomo et al.
Nanomaterials • 2023
Picosecond UV Kerr‐gated Raman spectroscopy with 280 nm laser excitation
T. Holtum, T. Reichenauer, V. Kumar, and S. Schlücker
Journal of Raman Spectroscopy • 2023
Ultraviolet resonance Raman spectroscopy of anthracene: Experiment and theory
T. Holtum, J. Bloino, C. Pappas, V. Kumar, V. Barone et al.
Journal of Raman Spectroscopy • 2021
Ultraviolet resonance Raman spectroscopy with a continuously tunable picosecond laser: Application to the supramolecular ligand guanidiniocarbonyl pyrrole (GCP)
V. Kumar, T. Holtum, D. Sebena, M. Giese, J. Voskuhl et al.
Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy • 2021
UV Resonance Raman Spectroscopy of the Supramolecular Ligand Guanidiniocarbonyl Indole (GCI) with 244 nm Laser Excitation
T. Holtum, V. Kumar, D. Sebena, J. Voskuhl, and S. Schlücker
Beilstein Institut • 2020
Incoherent phonon population and exciton-exciton annihilation dynamics in monolayer WS2 revealed by time-resolved Resonance Raman scattering
S. Han, C. Boguschewski, Y. Gao, L. Xiao, J. Zhu et al.
Optics Express • 2019
A tunable time-resolved spontaneous Raman spectroscopy setup for probing ultrafast collective excitation and quasiparticle dynamics in quantum materials
R. B. Versteeg, J. Zhu, P. Padmanabhan, C. Boguschewski, R. German et al.
Structural Dynamics • 2018
Exciton and phonon dynamics in highly aligned 7-atom wide armchair graphene nanoribbons as seen by time-resolved spontaneous Raman scattering
J. Zhu, R. German, B. V. Senkovskiy, D. Haberer, F. R. Fischer et al.
Nanoscale • 2018
Spin Dynamics of Charged and Neutral Excitons in Colloidal Nanocrystals
D. R. Yakovlev, and A. V. Rodina
Journal of Electronic Materials • 2018
资料下载
产品数据表
ORPHEUS-PS 窄带宽光学参量放大器
产品数据表
SHBC 二次谐波带宽压缩器
产品数据表
产品目录
飞秒激光器飞秒科研系统
产品目录
概述
规格参数
性能

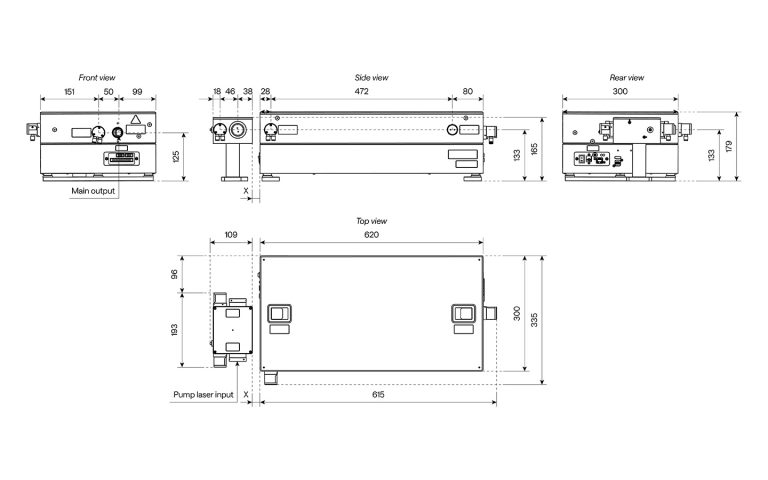

轮廓图
